High Pressure Cascade Pump DC55JE
-

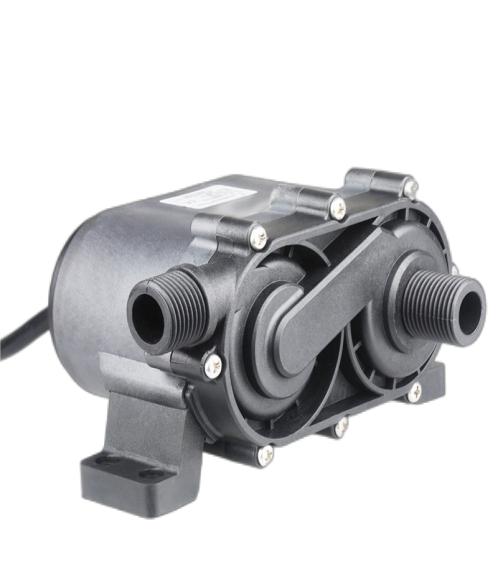

Product Rendering
Product Features
Product Name: High Pressure Cascade Pump DC55JE Weight： 1kg Model No.： DC55JE Lifespan： ≥30000hContinuous Protection class： IP68 Color： Black Certifications： CE,ROSH Housing Material： PPS+30%GF Noise level： ≤35dB Sealing： ≥0.5MPa（5kg） Insulation class： H级（180°） Principle of operation： Centrifugal pump Application： Cooling circulation systems Scope of use
Type of liquid used：
Oily media, water, acids, alkalis, salts and other fluids. Temperature of liquid used：
-30°—100°Non-submersible built-in three-phase plate / Submersible external three-phase plate
Speed control method：
*PWM speed regulation: amplitude 5V 50-800HZ can be customized.
*0-5V speed regulation
*Potentiometer speed regulation: resistance range 4.7K ~ 20K
Type of power supply：
DC power supply, solar panel, battery Basic parameters (parameters can be customized)
Product Model DC55JE-12240PWM
DC55JE-12240VR
DC55JE-12240S
DC55JE-24320PWM
DC55JE-24320VR
DC55JE-24320S
PWM:PWM speed control (50-800HZ/5V)
VR:Potentiometer speed regulation
VS:0~5V analog voltage signal speed control
S:Fixed speed
Rated Voltage 12V 24V DC OperatingVoltage Range 5-12V
14-30V
Within this range, the pump can work normally Ratedcurrent 8.3A(9.2A)
6.3A(6.7A)
Closed outlet current (open pumping current) Input power 100W(110W)
150W(160W)
Closed outlet power (open pumping power) Maximumflowrate 1800L/H
2000L/H
Open-port flow rate Maximum head 24M
32M
Static head Minimum input power 12V-10A
24V-7A
Description of additional functions
Jamming protection Pump stops working when jammed Water shortage/idling protection The pump will stop (8 seconds) and run (2 seconds) cyclically when the pump is out of water or idling, the protection strategy can be customized. Overload protection When the voltage is unstable or for other reasons exceeds the rated power of the pump, the pump will stop running. Reverse power connection When the positive and negative poles of the power supply are reversed, the pump stops running, and after reconnecting, it works normally. Pump driver built-in
Suitable for external land use Flow rate and head curve
Dimensional drawings
Parameter Test Installation Diagram
Note: This product does not have the function of self-priming, so when installing, you need to ensure that there is enough water in the gland cavity, that is, when installing, you need to ensure that the center of the pump is lower than the liquid level in the tank to ensure that the pump can operate normally!
-
