Brushless DC Water Pump: DC55E
-

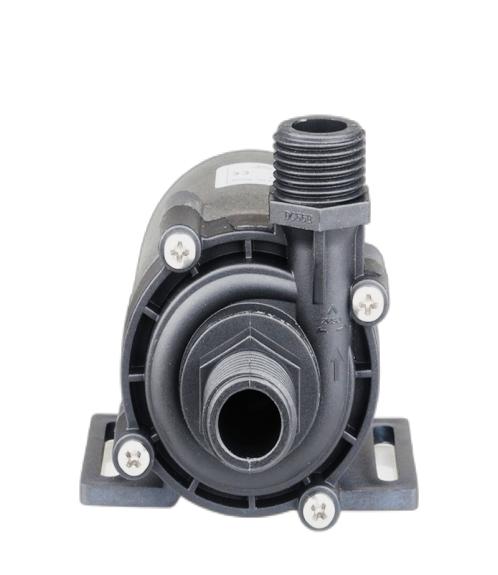

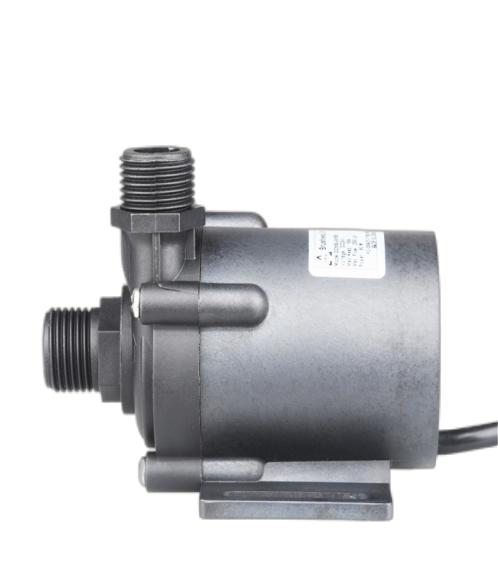

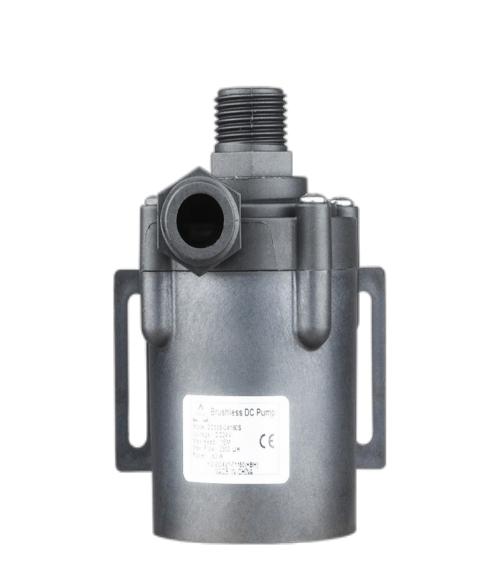

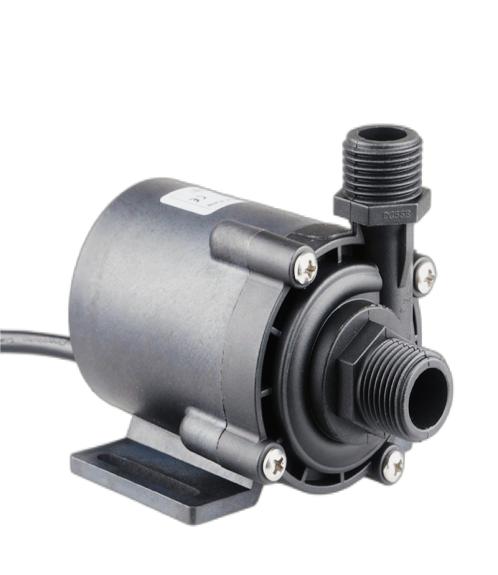

Product Rendering
Drive external version Driver built-in version
Product Features
Product Name: Brushless DC Water Pump DC55E Weight： 0.52kg Model No.： DC55E Lifespan： ≥30000hContinuous Protection class： IP68 Color： Black Certifications： CE,ROSH Housing Material： PPS+30%GF Noise level： ≤35dB Sealing： ≥0.5MPa（5kg） Insulation class： H级（180°） Principle of operation： Centrifugal pump Application： Cooling circulation systems Scope of use
Type of liquid used：
Oily media, water, acids, alkalis, salts and other fluids. Temperature of liquid used：
-30°—100°Non-submersible built-in three-phase plate / Submersible external three-phase plate
Speed control method：
*PWM speed regulation: amplitude 5V 50-800HZ can be customized.
*0-5V speed regulation
*Potentiometer speed regulation: resistance range 4.7K ~ 20K
Type of power supply：
DC power supply, solar panel, battery Basic parameters (parameters can be customized)
Product Model DC55E-12120PWM
DC55E-12120VR
DC55E-12120VS
DC55E-12120S
DC55E-24120PWM
DC55E-24120VR
DC55E-24120VS
DC55E-24120S
DC55E-24160PWM
DC55E-24160VR
DC55E-24160VS
DC55E-24160S
DC55E-36160PWM
DC55E-36160VR
DC55E-36160VS
DC55E-36160S
PWM:PWM speed control (50-800HZ/5V)
VR:Potentiometer speed regulation
VS:0~5V analog voltage signal speed control
S:Fixed speed
Rated Voltage 12V 24V DC 24V DC 36V Operating Voltage Range 9-12V
9-30V
9-30V
9-40V
此范围内，水泵能够正常工作
Rated current 3.5A(4.5A)
1.4A(2.2A)
2.7A(3.3A)
1.8A(2.2A)
Closed outlet current (open pumping current) Input power 42W(54W)
42W(54W)
65W(80W)
65W(80W)
Closed outlet power (open pumping power) Maximum flow rate 2000L/H
2000L/H
2400L/H
2400L/H
Open-port flow rate Maximum head 12M
12M
16M
16M
Static head Minimum input power 12V-5A
24V-3A
24V-4A
36V-3A
Description of additional functions
Jamming protection Pump stops working when jammed Water shortage/idling protection The pump will stop (8 seconds) and run (2 seconds) cyclically when the pump is out of water or idling, the protection strategy can be customized. Overload protection When the voltage is unstable or for other reasons exceeds the rated power of the pump, the pump will stop running. Reverse power connection When the positive and negative poles of the power supply are reversed, the pump stops running, and after reconnecting, it works normally. Pump driver built-in
Suitable for external land use Pump driver external
Suitable for high temperature or corrosive solution submersible installation Flow rate and head curve
Dimensional drawings
Parameter Test Installation Diagram
Note: This product does not have the function of self-priming, so when installing, you need to ensure that there is enough water in the gland cavity, that is, when installing, you need to ensure that the center of the pump is lower than the liquid level in the tank to ensure that the pump can operate normally!
-
