Brushless DC water pump: DC60B new model
-

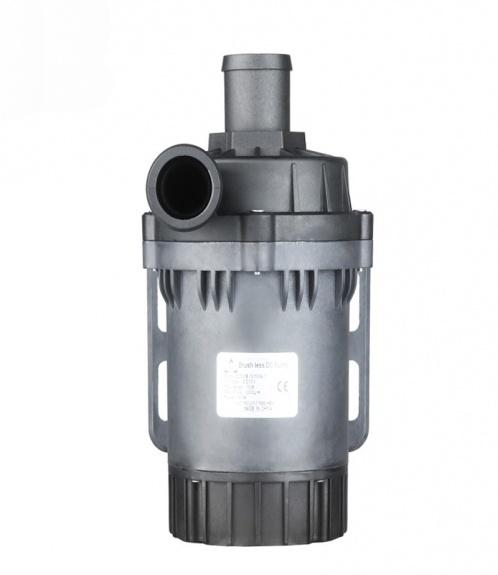

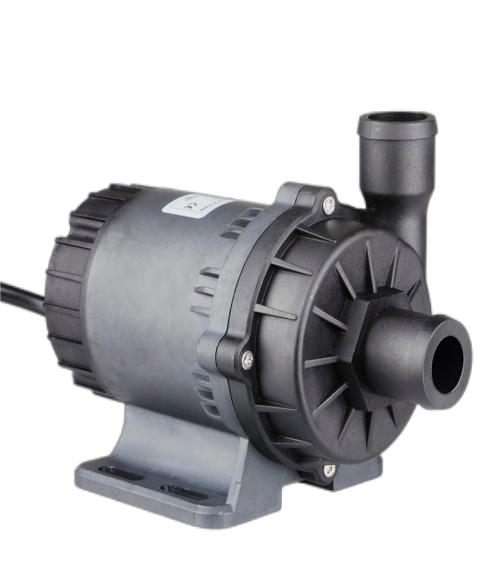

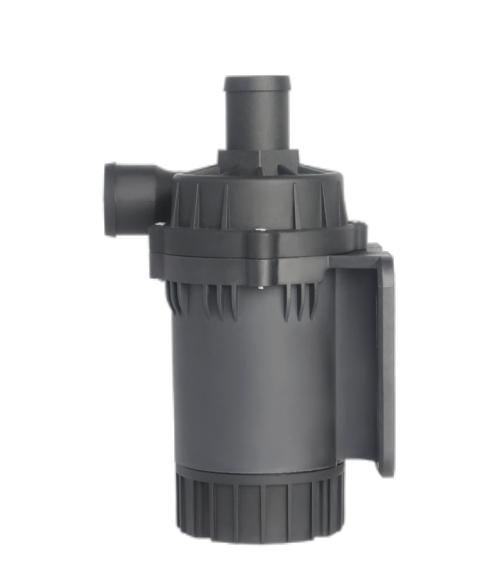

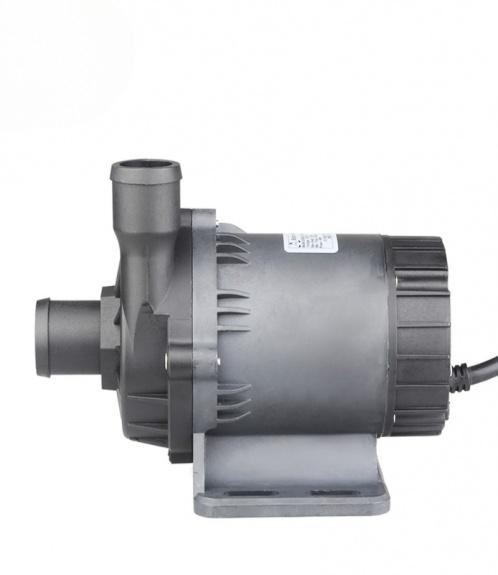

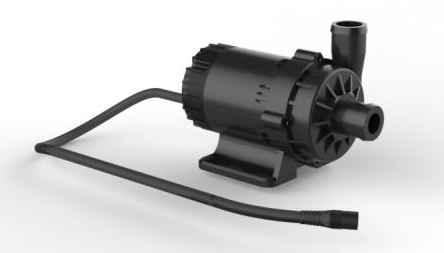

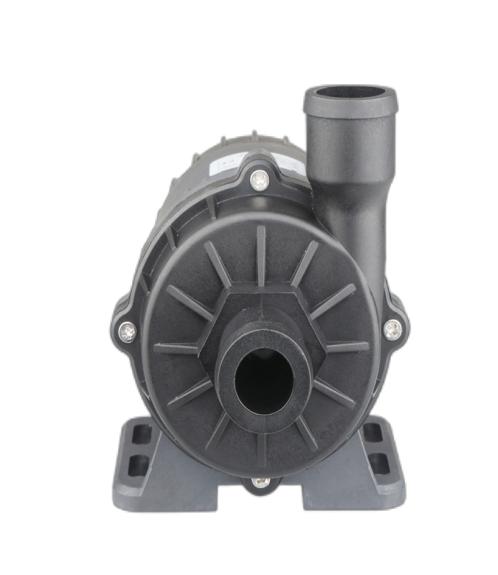

Product Rendering
Driver external version Driver built-in version
Product features
Product name: Brushless DC water pump: DC60B new model Weight： 0.89kg Model No.： DC60B Lifespan： ≥30000hContinuous Protection grade： IP68 Color： Black Certifications： CE,ROSH Case Material： PPS+30%GF Noise： ≤35dB Sealing： ≥0.8MPa（8kg） Insulation Grade： H级（180°） Working Principle： Centrifugal pump Application： Electric vehicle cooling system, circulation cooling system Scope of use
Type of liquid used：
Oily media, water, acids, alkalis, salts and other fluids. Temperature of liquid used：
-30°—100°Non-submersible built-in three-phase board / Submersible external three-phase board
Speed control mode：
*PWM speed control: amplitude 5V 50-800HZ can be customized.
*0-5V speed control
*Potentiometer speed control: resistance range 4.7K~20K
Type of power supply used：
DC power supply, solar panel, battery Basic parameters (parameters can be customized)
Product Model DC60B-12100PWM
DC60B-12100VR
DC60B-12100VS
DC60B-12100S
DC60B-241200PWM
DC60B-24120VR
DC60B-24120VS
DC60B-24120S
DC60B-36120PWM
DC60B-36120VR
DC60B-36120VS
DC60B-36120S
PWM:PWM speed control (50-800HZ/5V)
VR:potentiometer speed control
VS:0~5V analog voltage signal speed control
S:Fixed speed
Rated Voltage 12V DC
24V DC
36V DC
Operating Voltage Range 5-12V
5-28V
5-40V
Constant power output when the input voltage is higher than the rated voltage. Rated current 5.4A(6.6A)
4.5A(5A)
3A(3.3A)
Closed outlet current (open pumping current) Input power 65W(80W)
108W(120W)
108W(120W)
Closed outlet power (open pumping power) Maximum flow rate 3200L/H
3800L/H
3800L/H
Open-port flow rate Maximum head 10M
12M
12M
Static head Minimum input power 12V-7A
24V-6A
36V-4A
Description of additional features
Jamming protection The pump stops working in case of jamming Water shortage/idling protection The pump will stop (8 seconds) and run (2 seconds) cyclically when the pump is out of water or idling, and the protection strategy can be customized. Overload protection When the voltage is unstable or for other reasons exceeds the rated power of the pump, the pump will stop running. Reverse power connection When the positive and negative poles of the power supply are reversed, the pump stops running, and after reconnecting, it works normally. Pump driver built-in
Suitable for external land use Pump driver external
Suitable for high temperature or corrosive solution submersible installation Flow rate and head curve
Dimensional drawings
Parameter Test Installation Diagram
Note: This product does not have the function of self-priming, so when installing, you need to ensure that there is enough water in the gland cavity, that is, when installing, you need to ensure that the center of the pump is lower than the liquid level in the tank to ensure that the pump can operate normally!
-
